Plastic Bag Making Machine

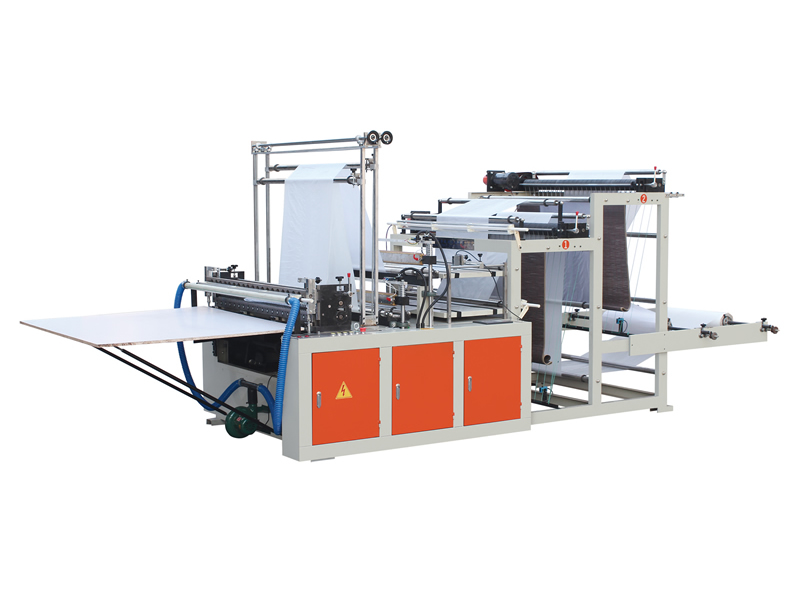

Front and Rear Double Bottom Sealing Bag Making Machine
Front and Rear Double Bottom Sealing Bag Making Machine

Front and Rear Double Bottom Sealing Bag Making Machine

This machine has the Photoelectric automatic tracking microcomputer length setting, high limit downtime, automatic counting, countdown alarm, compensation of high precision, making bags, little error, the machine automation degree is high, is the production of White bag, color bag, flat bag, vest bags, and so on all kinds of plastic flexible packaging bags of ideal machine.

Share:

Performance and Features

Fuselage structural design streamlined.

No material, blocking bags automatically shut down.

Microcomputer control, stepper motor prop material (optional servo motor control system)

The temperature error is small, bag length can be adjusted freely buttons.

Photoelectric tracking, stopping automatically when the label lost.

Feeding, back cover, cutting, notching, conveying one time.

High degree of automation, good economic returns.

Use:

This machine is suitable for production of White bag, color bag, flat bag, vest bags, etc all kinds of plastic soft packing bags


Main Technical Parameters

ModelFR-DFR-650BFR-DFR-800BFR-DFR-900BFR-DFR-1000BFR-DFR-1100BFR-DFR-1200BFR-DFR-1500B
Max. Width580mm700mm800mm800mm1000mm1100mm1400mm
Max. length2000mm2000mm2000mm2000mm2000mm2000mm2000mm
Photocell1111111
Cutting Thickness0.01-0.1mm0.01-0.1mm0.01-0.1mm0.01-0.1mm0.01-0.10 mm0.01-0.10 mm0.01-0.10 mm
Bag Output5-120*25-120*25-120只/分*25-120*25-100*25-100*25-100*2
Main Power1.5kw1.5kw1.5kw1.5kw1.5kw1.5kw2.2kw
Feeding Motor300w*2300w*2300w*2300w*2300w*2400w*2400w*2
Power supply50HZ220V+10%-15%50HZ220V+10%-15%50HZ220V+10%-15%50HZ220V+10%-15%50HZ220V+10%-15%50HZ220V+10%-15%50HZ220V+10%-15%
Weight700kg750kg900kg950kg1000kg1000kg1200kg
Overall Dimensions4000×1200×1800(mm)4000×1400×1800(mm)4000×1500×1800(mm)4000×1600×1800(mm)4000×1700×1800(mm)4000×1800×1800(mm) 4000×2100×1800(mm)
