Applications：

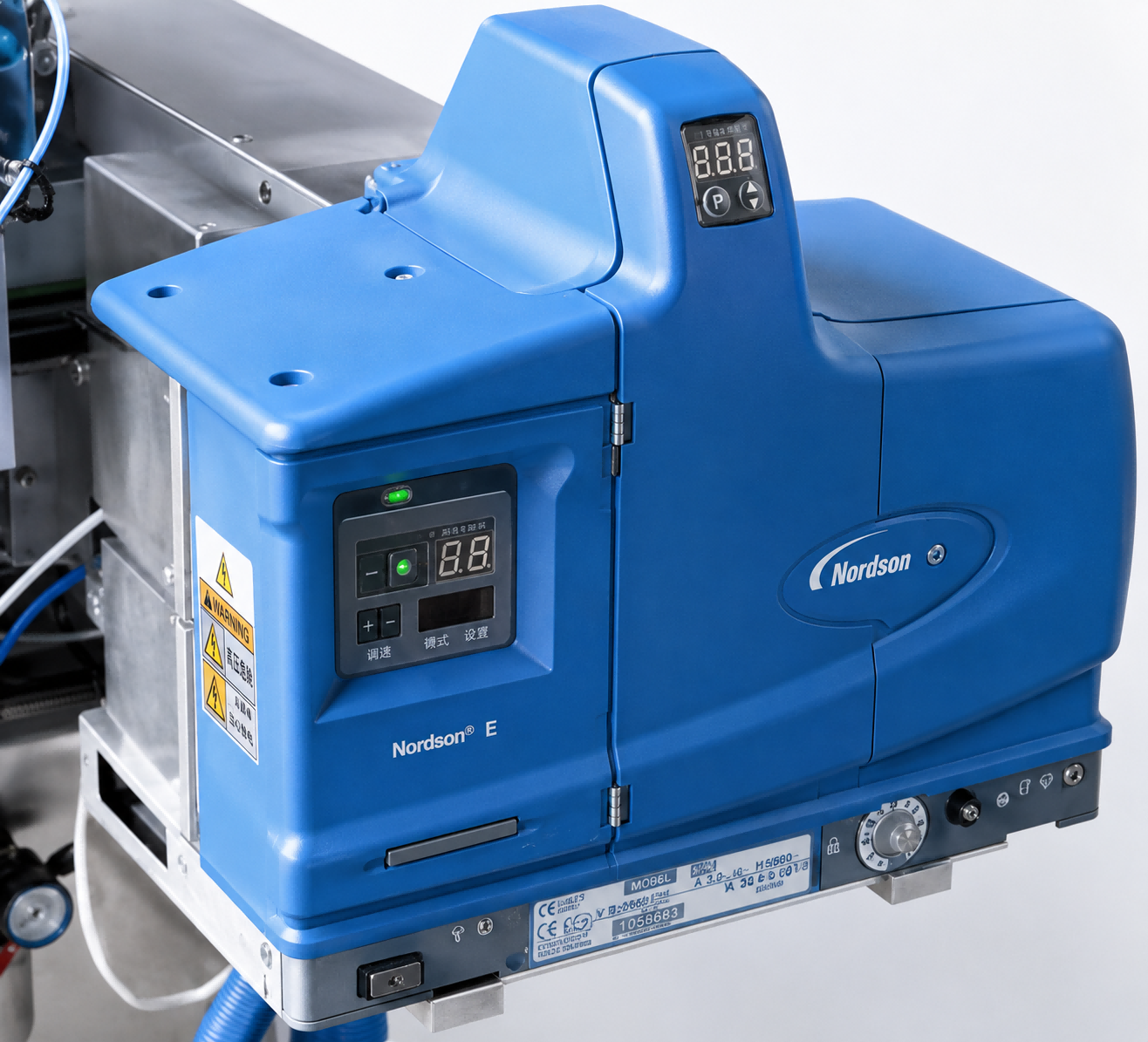

The product is suitable for cartoning and packaging of blade, two-edged razor blade and similar articles, thus, blade feeding,finished products counting, carton molding,blade cartoning, paper tongue adhesive spraying sealing of double ends and other work can be automatically finished.The machine can be used alone, and it also can be connected with other equipment for forming production line(Hot melt glue machine can be equipped).
Features:
■PLC automatic control, variable frequency speed regulation, electrical components are internationally renowned brands.
■Man-machine interface operating system is equipped.
■The overload protection of main drive conduct photoelectric monitoring action of various parts,
machine can automatically shutdown and display reason if there is abnormal operation, thus, failure can be timely eliminated.
■Cartoning speed and finished products counting can be automatically displayed.
■Missing and elimination of blade could be automatically detected. Cartoning could automatically stop if there is no blade.
■There is stable performance and simple operation, it is easy to understand.
| Model | 80D | |
| Carton speed | 50-90盒/min | |
| Box | Quality requirement | 250-350g/m² |
| Dimension range (L×W×H) | 50×26×6mm | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 20m³/h | |
| Power supply | 380V 50HZ | |
| Motor power | 0.75kw | |
| Machine dimension (L×W×H) | 3200×1350×1600mm | |
| Machine weight | 1200Kg | |
