Basic product introduction:

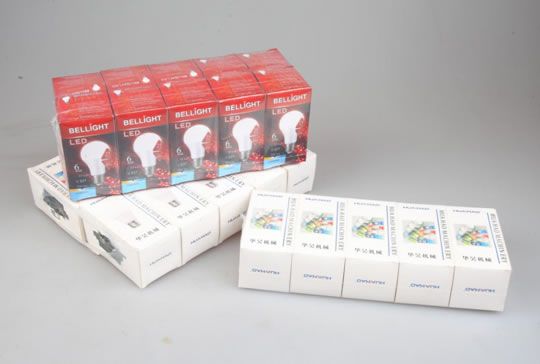

The HHZ-400B model is suitable for medicine boxes, medicine bottles, outer boxes of food, chemicals, cosmetics, beverages, etc., as well as cuff-type PE film heat shrink packaging machines. The maximum speed can reach 20 packs/min. Automatically complete the stacking and collection of items, conveying in place, packaging film conveying, packaging film sealing, shrinking, etc., photoelectric control, frequency conversion speed regulation, human-machine interface PLC control, if there is an abnormality in operation, the cause of the failure can be automatically displayed, and the fault can be eliminated in time. The machine can be used alone or connected with cartoning machine, labeling machine and case packing machine to form an assembly line.
| Model | 400B |
| Production capacity | 10-25 packs/min |
| Maximum packing size | 400×200×150mm |
| Feeding horizontal size | 900±50mm |
| Packaging material size(thickness×width) | 0.03-0.1×350mm |
| Outer roll diameter of packaging material | no more than 300mm |
| Inner roll diameter of packaging material(paper tube) | not less than 70mm |
| Dimensions(length × width × height) | 3600 × 1100 × 1700mm |
| Machine weight | 500kg |
| Main material | carbon steel |
