Applications：

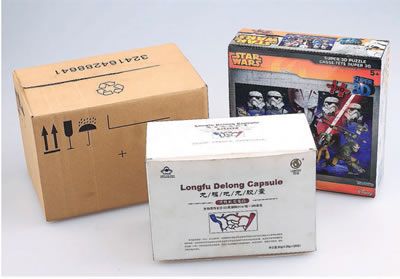

The product is suitable for small cartoning and packaging of kit, granule powder box, tea coffee box, card box and other similar toys,thus, collection of stacked items, conveying in place, carton opening, goods packing, sealing and other work items can be automatically finished.The machine can be used alone, and it also can be connected with other equipment for forming production line.
Features:
■PLC automatic control, variable frequency speed regulation, electrical components are internationally renowned brands.
■Man-machine interface operating system is equipped.
■The overload protection of main drive conduct photoelectric monitoring action of various parts,
machine can automatically shutdown and display reason if there is abnormal operation, thus, failure can be timely eliminated.
■Material can be automatically stacked.
■Cartoning could automatically stop if there is no material and operating manual.
■There is stable performance and simple operation, it is easy to understand.
| Model | 200 |
| Carton speed | 20-50boxs/min |
| Box quality requirement | 450-500g/m² |
| Box dimension range (LxWxH) | (150-300)X(120-200)X(50-130)mm |
| Working pressure | ≥0.6mpa |
| Air consumption | 30m³/h |
| Power supply | 380V 50HZ |
| Motor power | 1.5kw |
| Machine dimension (LxWxH) | 3200×1350×1600mm |
| Machine weight | 1200Kg |
