Applications：

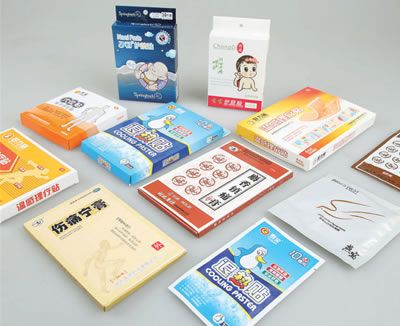

The product is suitable for cartoning and packaging of pain plaster,acupoint sticking products,facial mask, paste products, and similar goods, thus, folding of operating manual(1-4 folding), carton molding,goods loading, batch number printing, paper tongue sealing of both ends can be automatically finished.The machine can be used alone, and it also can be connected with other equipment for forming production line(Hot melt glue machine can be equipped).
Features:
■PLC automatic control, variable frequency speed regulation, electrical components are internationally renowned brands.
■Man-machine interface operating system is equipped.
■The overload protection of main drive can automatically display failure cause,cartoning speed and finished product counting.

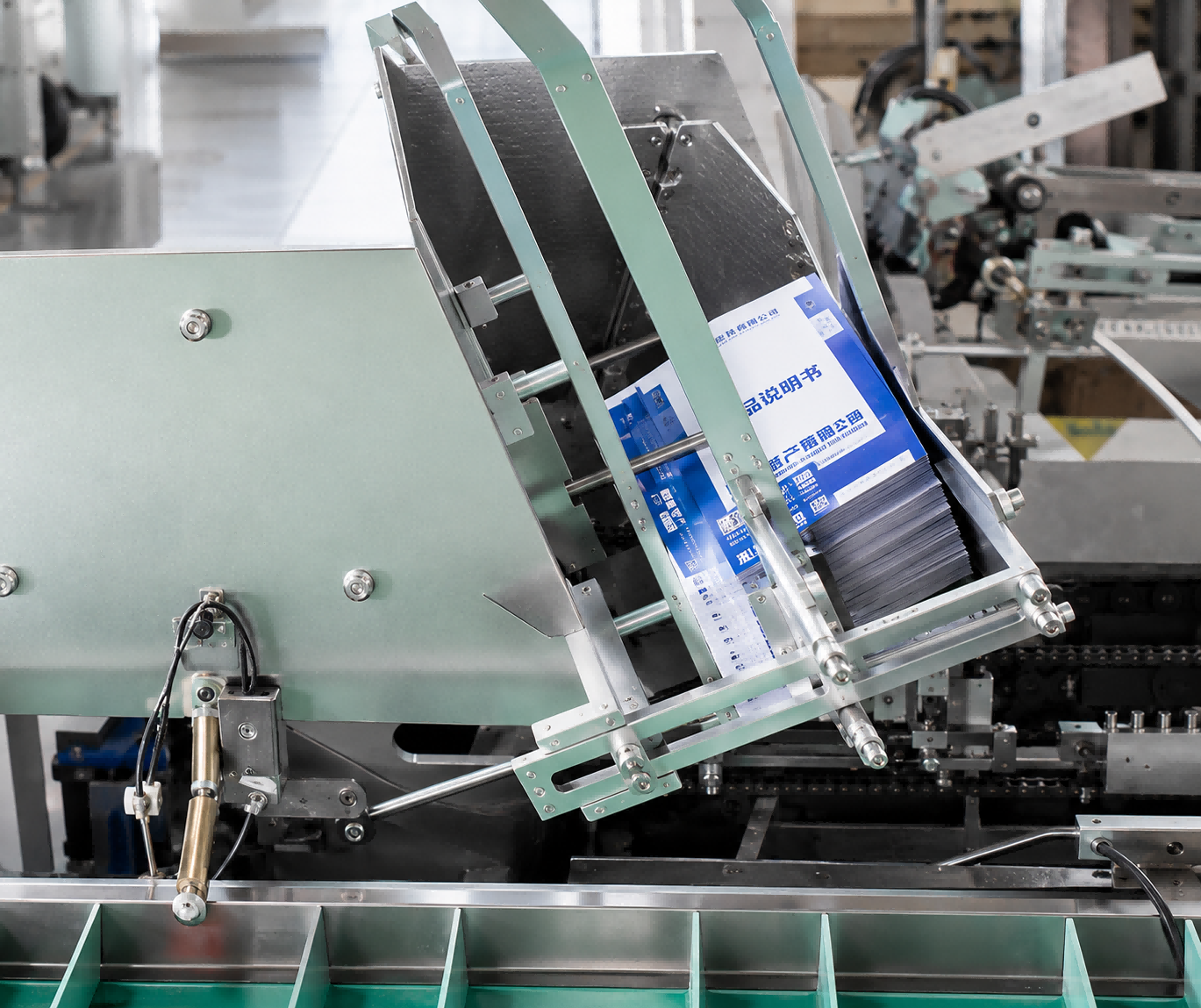

■Missing, elimination and other function of material and operating manual can be automatically inspected.
■Missing and elimination of blade could be automatically detected. Cartoning could automatically stop if there is no blade.
■There is stable performance and simple operation, it is easy to understand.
| Model | 120/160A | |
| Carton speed | 30-70盒/min | |
| Box | Dimension range (L×W×H) | (70-180)×(70-160)×(15-40)mm |
| Leaflet | Unfolded leaflet specification | (90-170)×(110-210)mm |
| Fold range | 1-4fold | |
| Compressed air | Working pressure：≥0.6mpa | |
| Power supply | 380V 50HZ | |
| Motor power | 0.75kw | |
| Machine dimension (L×W×H) | 6000×1350×1600mm | |
| Machine weight | 1600kg | |
