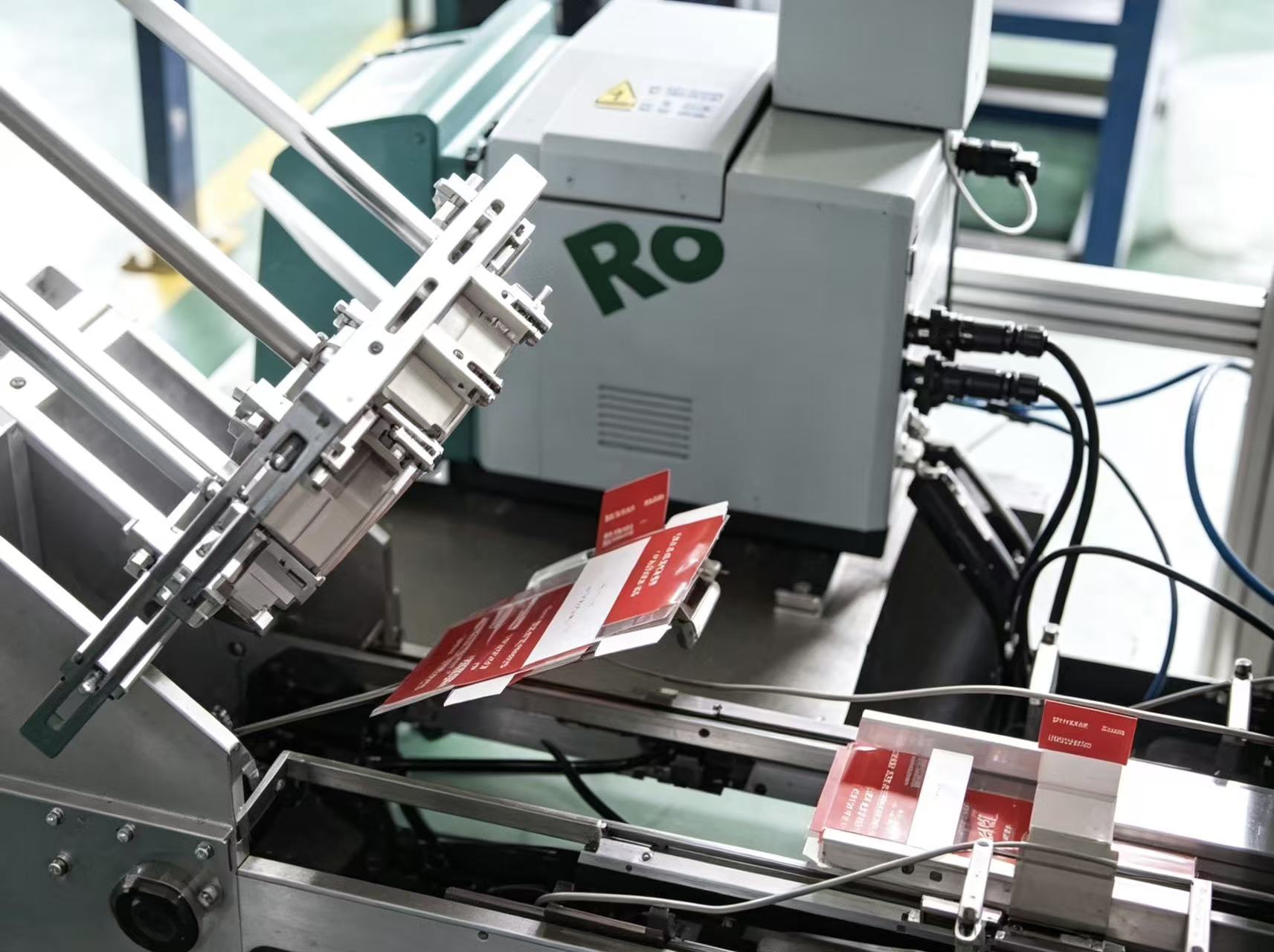

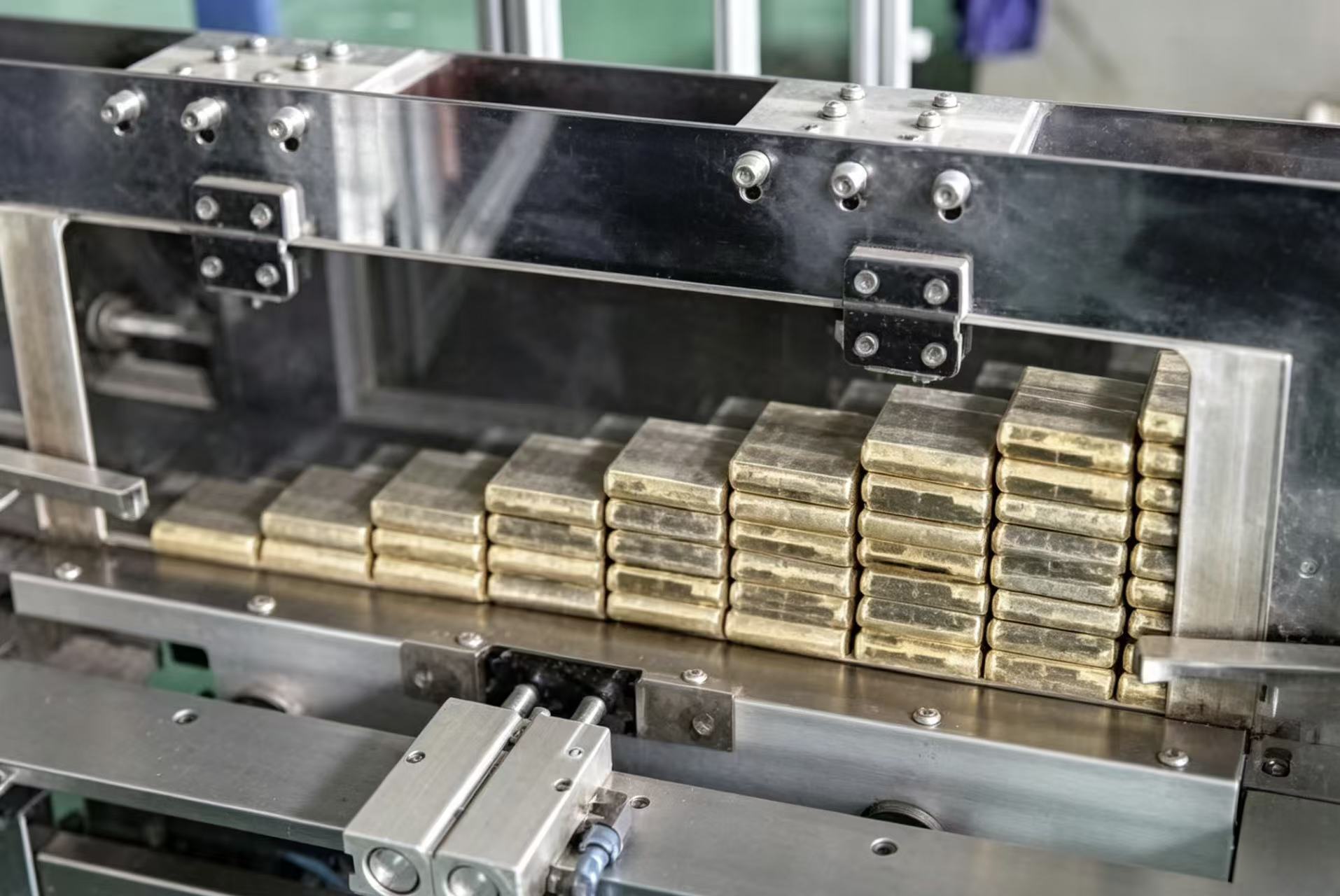

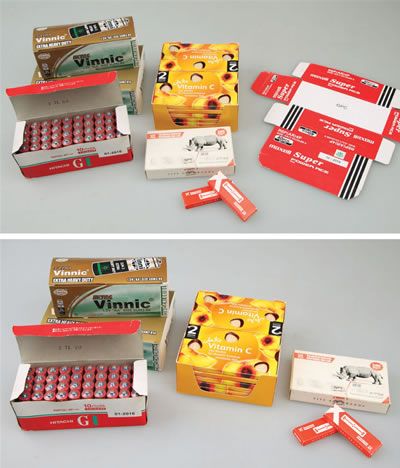

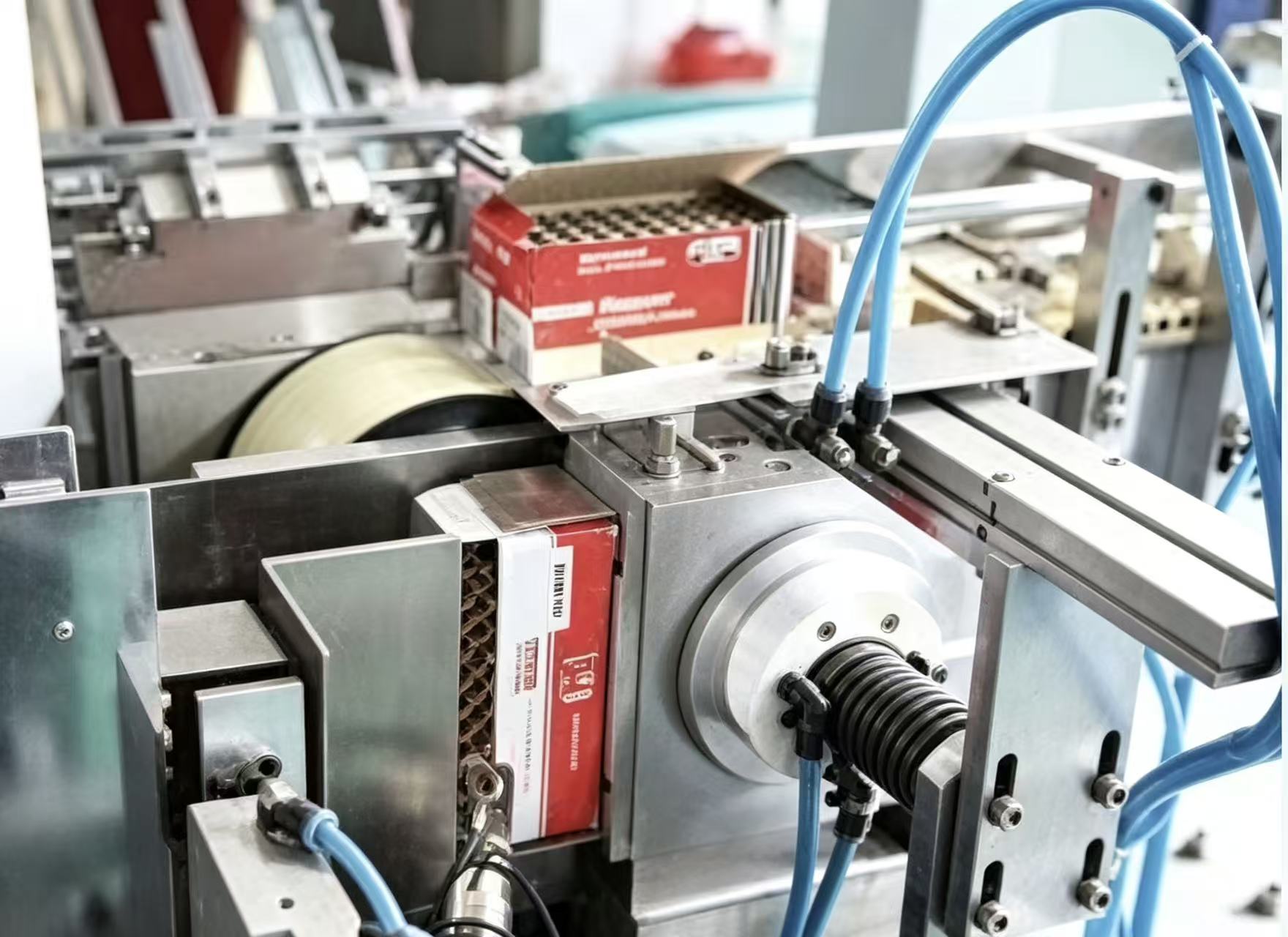

The machine is new and further improvement model on the basis of advanced technology at home and abroad, it is integrated high-tech product in the field of machine, electricity, gas and light.This machine is suitable for cartoning and packaging of Zinc manganese battery/alkaline manganese battery, it also suitable for cartoning and packaging of pharmaceutical and food industry, daily necessities, cosmetics, electronic products and hardware products and similar articles.Thus, paper grabbing, carton folding, automatic counting cartoning, operating manual(1-4 folding)or automatic throwing of qualification certificate, paper tongue sealing of double ends and other work.The machine can be used alone, and it also can be connected with other equipment for forming production line(Hot melt adhesive machine can be equipped).
Features:
■PLC automatic control, variable frequency speed regulation, electrical components are internationally renowned brands.
■Man-machine interface operating system is equipped.
■The overload protection of main drive, failure shutdown and displaying failure reason through analysis.
■Carton could be automatically eliminated if there is no packaging material or operating manual.
■Many different material can be achieved for cartoning at the same time.
■There is stable performance and simple operation, it is easy to understand.
| Model | 100 |
| Carton speed | 15-30盒/min |
| Box quality requirement | 250-350g/m² |
| Box dimension range (L×W×H) | (100-160)×(40-100)×(30-60)mm |
Compressed air working pressure | ≥0.6mpa |
| Air consumption | 50m³/h |
| Power supply | 380V 50HZ |
| Motor power | 3.5kw |
| Machine dimension (L×W×H) | 2350×1650×1700mm |
| Machine weight | 1300Kg |
