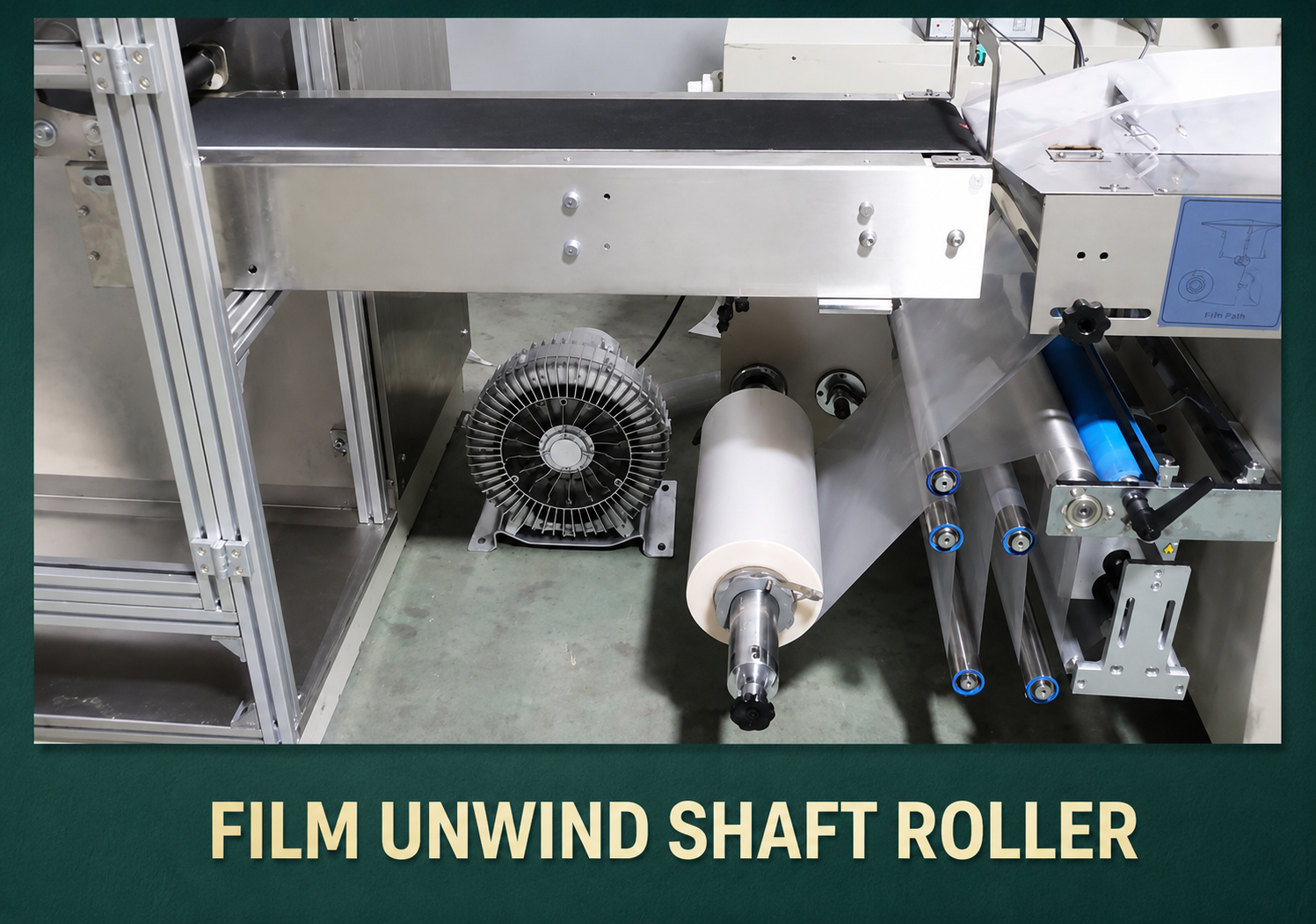

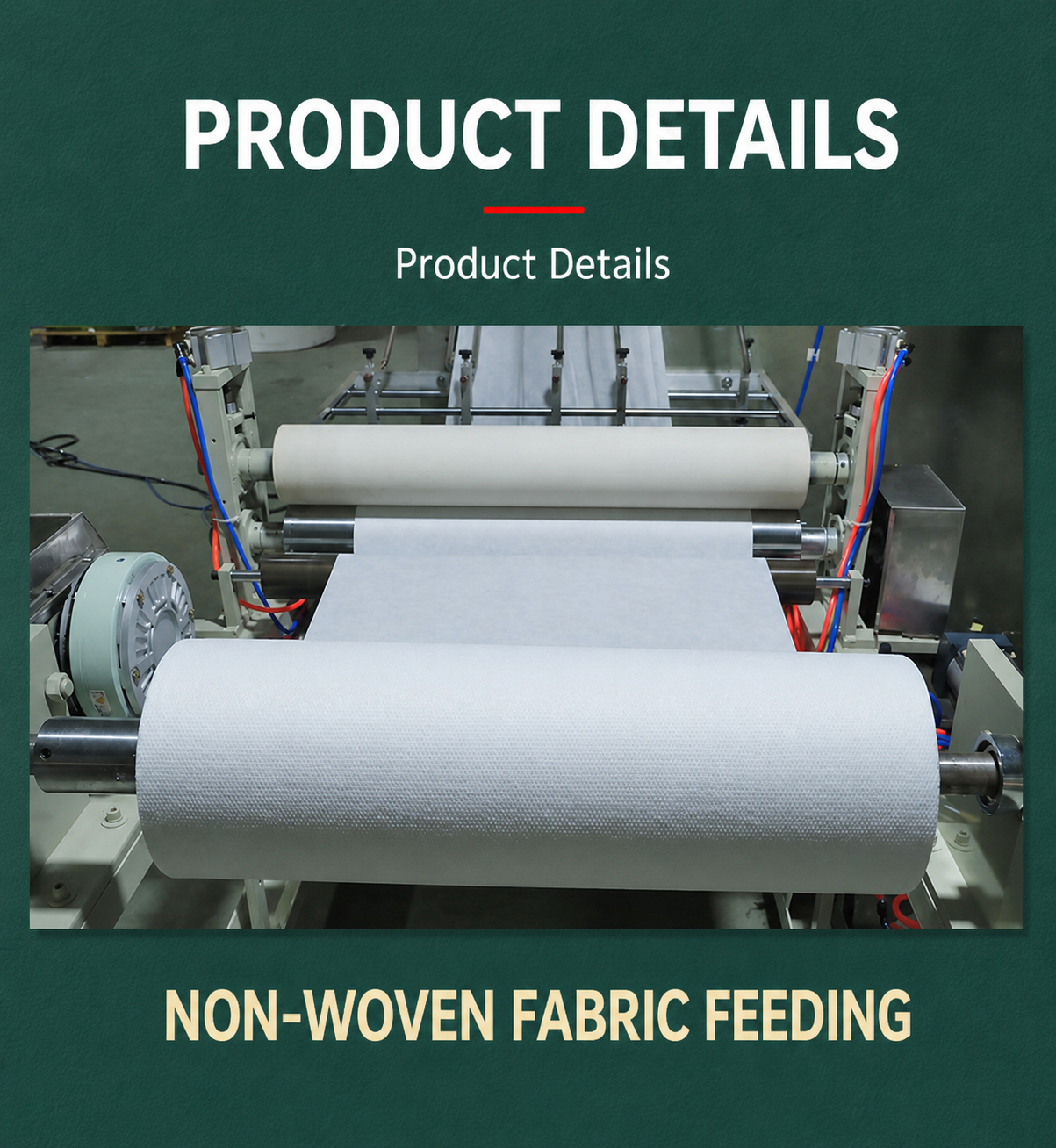

- Equipment Working Principle: Manual Unwinding → Conveying → Longitudinal Folding → Conveying → Fixed-Length Cutting → Transverse Folding → Finished Product Conveying.
- The equipment operates using a continuous, non-stop production mode, ensuring precise product folding and minimizing raw material waste.

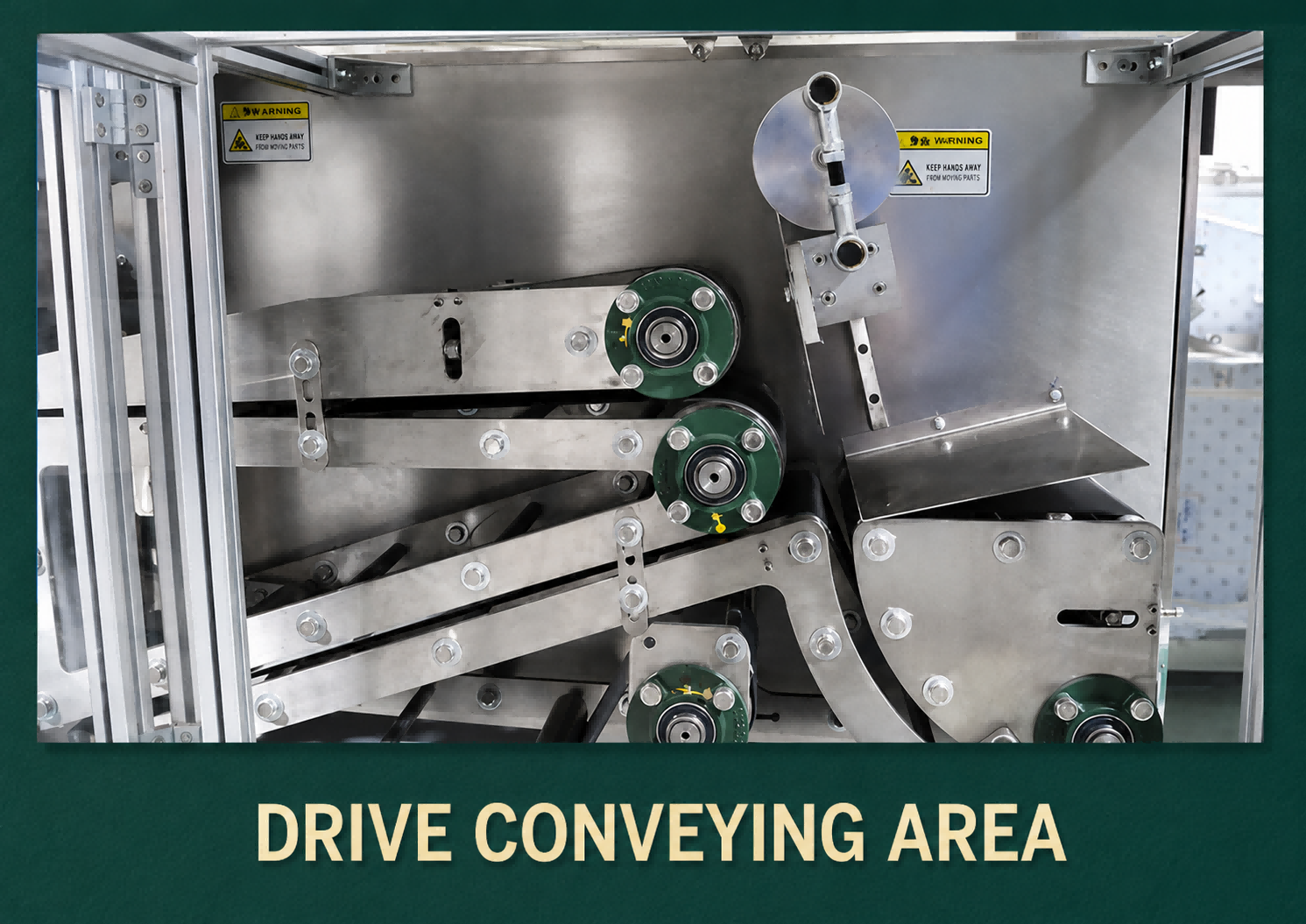

- The machine is equipped with a synchronous conveying device and a magnetic powder tension controller to ensure stable tension during the conveyance of finished products.
- The equipment features our proprietary, innovative multi-functional folding unit, which supports a wide variety of folding patterns and allows for easy adjustment.
- The machine utilizes a servo-controlled, slider-type transverse folding mechanism capable of performing up to three transverse folds.

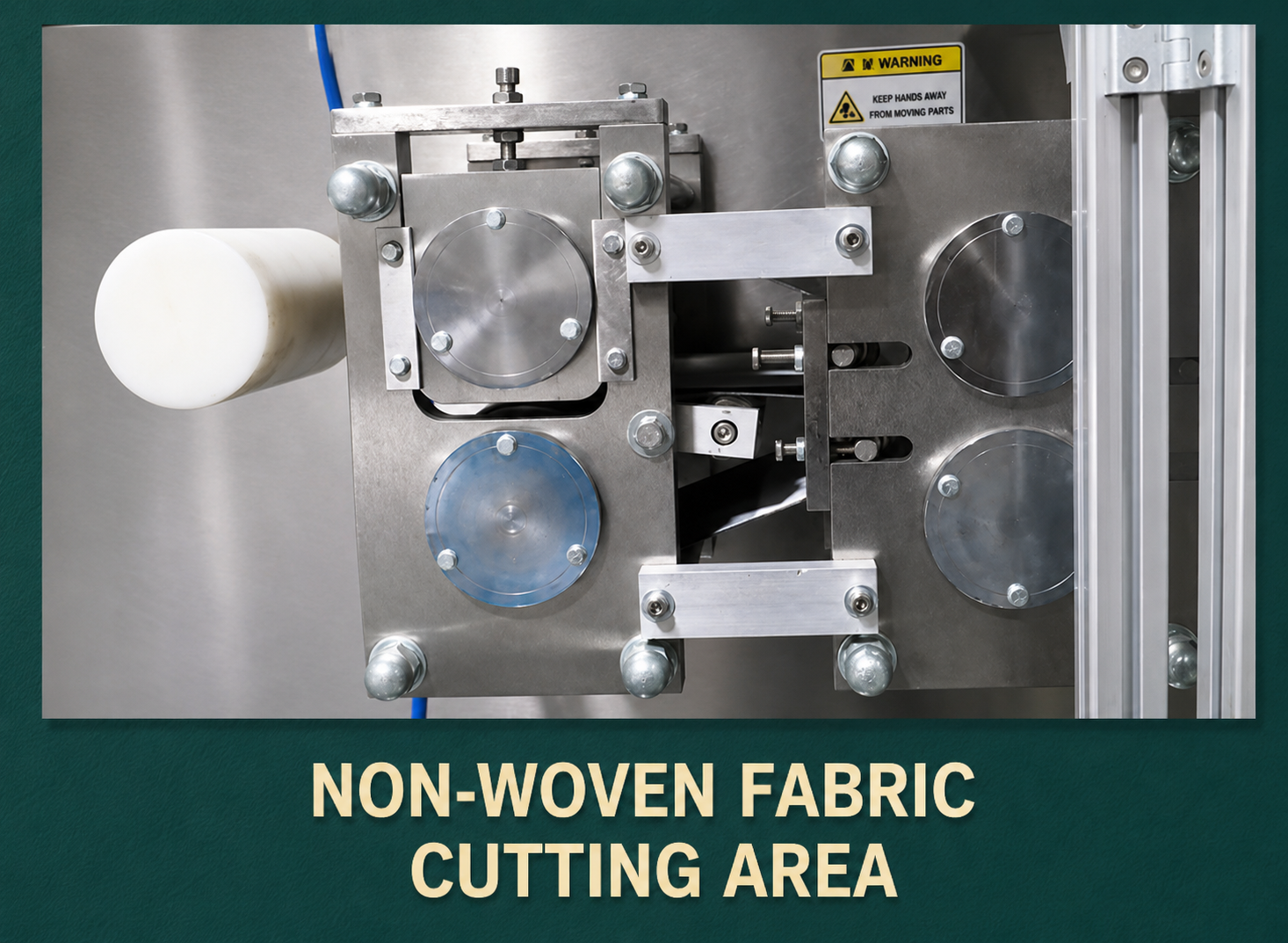

- The equipment employs a servo-controlled cutting system featuring imported blades to ensure precise and accurate cutting.

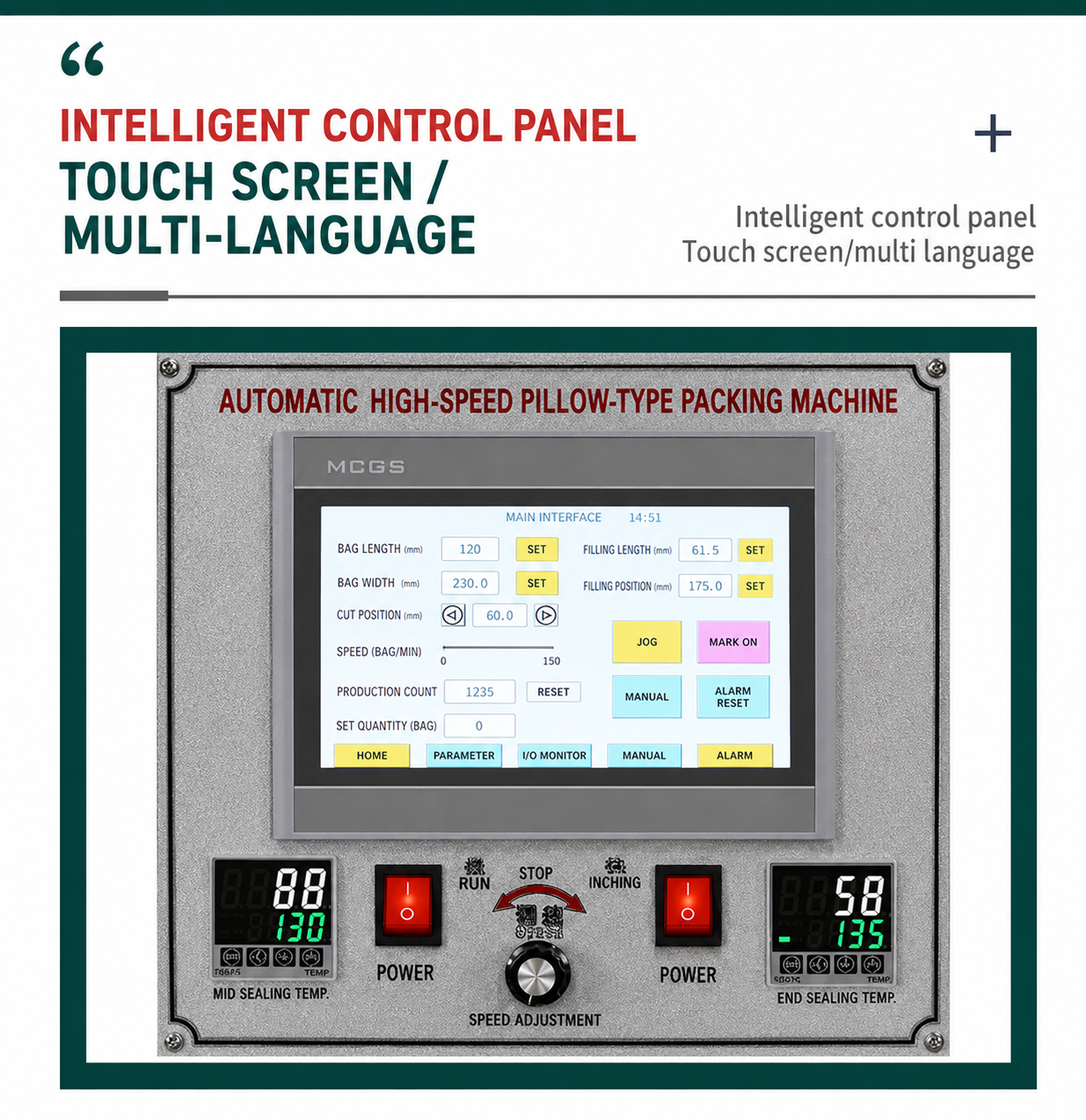

- Production is jointly controlled by servo motors, a PLC programmable controller, and a microcomputer display interface; all production parameters are clearly displayed at a glance, facilitating easy operation.
- The machine's exterior casing is constructed from stainless steel.
- Featuring an advanced design philosophy, a compact structure, high operating speed, and excellent stability, the equipment delivers high production efficiency and fully complies with all national hygiene standards.
| Model | HY800 |
| Packaging Film Width | 120–220mm |
| Packaging Speed | 40–80 bags/min |
| Maximum Packaging Size | 300×200×50mm |
| Minimum Packaging Size | 150×100×10 mm |
| Power Supply / Voltage / Power | AC380V, 50HZ, 8KW |
| Unfolded Non-woven Fabric Size Range | L300–1600 mm, W250–800 mm |
| Folded Non-woven Fabric Size Range | L150–400 mm, W100–200 mm |
| Machine Weight | 2000kg |
| Machine Dimensions | 710×275×256mm |
