Bag Packaging Machine
Automatic Round Corner Four Sides Sealing Wet Wipe Packaging Machine
Automatic Round Corner Four Sides Sealing Wet Wipe Packaging Machine
Automatic Round Corner Four Sides Sealing Wet Wipe Packaging Machine

Automatic Round Corner Four Sides Sealing Wet Wipe Packaging Machine

Share:

Performance and features

- Features an adjustable mold design, enabling a single machine to produce wet wipes in a variety of different packaging sizes and specifications.

- Produces individually wrapped, four-side-sealed wet wipes, lending the product a premium aesthetic.

- Equipped with an imported Japanese metering pump, ensuring filling accuracy down to 0.01 ml.

- Operates via a touchscreen interface and PLC system, allowing for independent adjustment of temperature, speed, and wipe length.

- Key machine components are sourced from renowned brands, guaranteeing the equipment's stability and longevity.

- Servo motors control critical movements, thereby enhancing the machine's precision and operational stability.


Model
250R350R
Capacity60-130bags/min

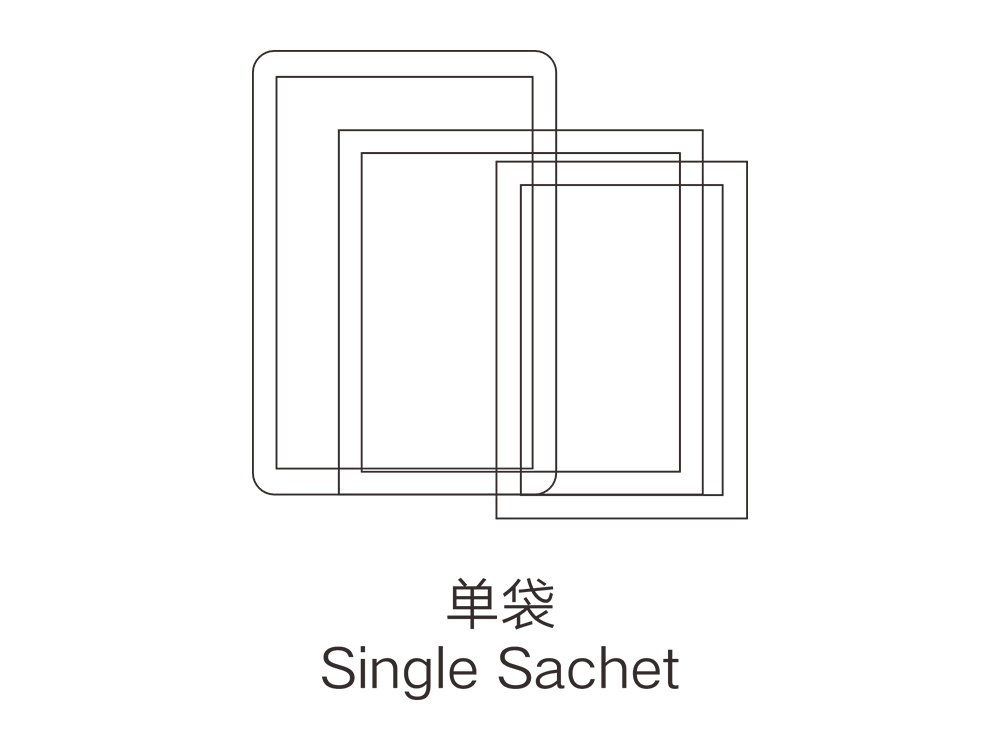

Bag Sealing TypeFour sides sealing
Bag Size Range

(L)40-125mm,

(W)40-100mm

(L)40-165mm,

(W)40-10mm(Round 40-150mm)

Tissue Materal 30-80g/m²
Packing MaterialLamination film,paper,aluminium
Outer Dia.of Tissue Roll1000mm
Outer Dia.of Packaging Film Roll350mm
Folding OptionMax.10 folding vertical,4 folding horizontal
Liquid Range
0-10ml
Machine Noise≤64.9DB
Air Consumption300-500ml/min,0.6-1.0Mpa
Total Power3kw
Power Supply220/380V 50/60HZ
Machine Weight1280kg1330kg

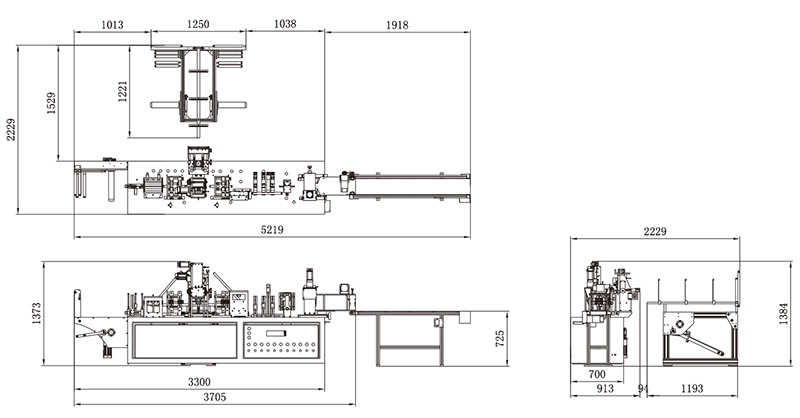

Machine Dimension3500×2800×1800mm3500×2800×1800mm
