Automatic Cup Counting Packing Machine

Automatic Cup Counting Packing Machine

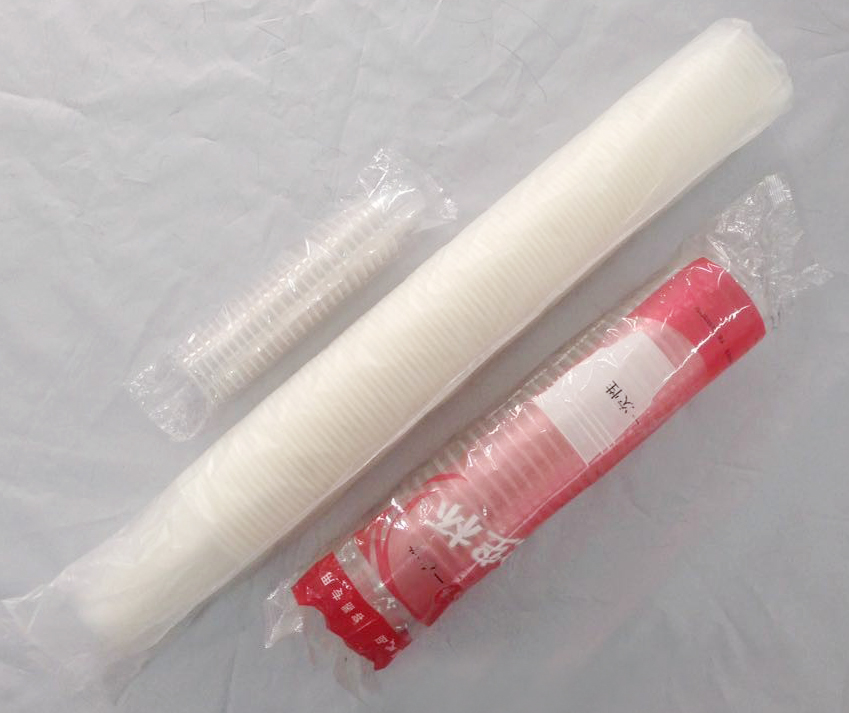

The Automatic Cup Counting Packing Machine is a high-efficiency, intelligent packaging device specially designed for the automatic counting, sorting and bagging of disposable plastic cups, paper cups, yogurt cups and other cup-shaped products. It integrates mechanical transmission, photoelectric counting, and pneumatic control technologies, realizing a fully automated packaging process from feeding to finished product output. This machine effectively replaces manual operation, greatly improving production efficiency and reducing labor costs, and is an essential equipment for food, beverage, catering supplies and daily chemical industries.


Share:

◆Main performance:

1Touch screen, convenient adjustment

2PLC controller, accurate calculation

3Photoelectric detection, great precision

4The length is automatic detected and set, without manual

5Unlimited speed, the scope of speed and length are very wide range

6Trilateral closure H(pillow sealing)

7. Automatic counting and feeding by single row (2-100pcs/bag)

8. Option with one or two rows packing (2-100pcs/bag)

9. Distance between with two cups only needs 3 mm



Model

HDX-4500

Type of film

BOPP/HDPE

Packaging film thickness

20-60 Mircon

Max. film width

420mm

Bag length

100-600mm

Cup diameter

40-98mm

Cup quantity

10-100/pcs

Packing speed(Depend on packing material)

10-40 Bag/min

Machine dimension

5500×1000×1300mm

Machine weight

1000kg
